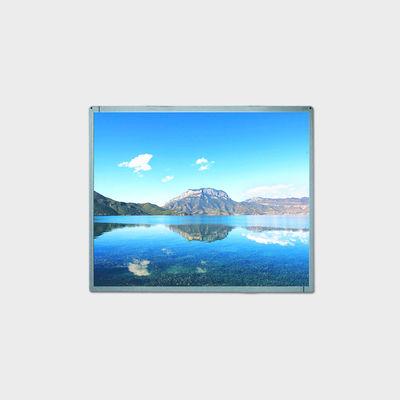

17 inch TFT Display Smart Home Control System With 1280*1024 Support High Brightness Solution
اتصل بي للحصول على عينات مجانية وكوبونات
ال WhatsApp:0086 18588475571
(ويتشات): 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| اسم | عرض TFT LCD | حجم لوحة | 17 " |
|---|---|---|---|
| دقة | 1280*1024 | سطوع | 1000 (TYP.) |
| درجة حرارة التشغيل. | 0 ~ 50 ℃ | منطقة نشطة | 337.92*270.336 ملم |
| الأبعاد الخطوط العريضة | 358.5*296.5*10.3 مللي متر | ||
| إبراز | 17 inch TFT display high brightness,smart home control system LCD,1280x1024 resolution TFT display,smart home control system LCD,1280x1024 resolution TFT display |
||
منتوج وصف
17 inch TFT Display Smart Home Control System With 1280*1024 Support High Brightness Solution
17 inch TFT Display Smart Home Control System With 1280*1024 Support High Brightness Solution
Product Advantages
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Applications
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0170GA02-C100
| Brand | Rogin |
|---|---|
| Series | TFT LCD Display |
| Panel Size | 17 inch |
| Model | LCMA-RX0170GA02-C100 |
| Brightness | 1000 |
| Resolution | 1280*1024 |
| Active Area | 337.92*270.336mm |
| Overall Size | 358.5*296.5*10.3mm |
| Viewing Angle | 85/85/80/80 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Touch Panel | Without |
| Operating Temperature | 0-50 ℃ |
