10.1 inch TFT LCD Display Outdoor 1000nits High Brightness Solution
اتصل بي للحصول على عينات مجانية وكوبونات
ال WhatsApp:0086 18588475571
(ويتشات): 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| حجم لوحة | 10.1" | دقة | 1280*800 |
|---|---|---|---|
| سطوع | 1000 (TYP.) | نسبة الارتفاع | 16:9 |
| منطقة نشطة | 216.96*135.6 ملم | الأبعاد الخطوط العريضة | 229.46*149.1*7.7ملم |
| إبراز | 10.1 inch high brightness LCD display,outdoor TFT LCD display,1000nits high brightness screen,outdoor TFT LCD display,1000nits high brightness screen |
||
منتوج وصف

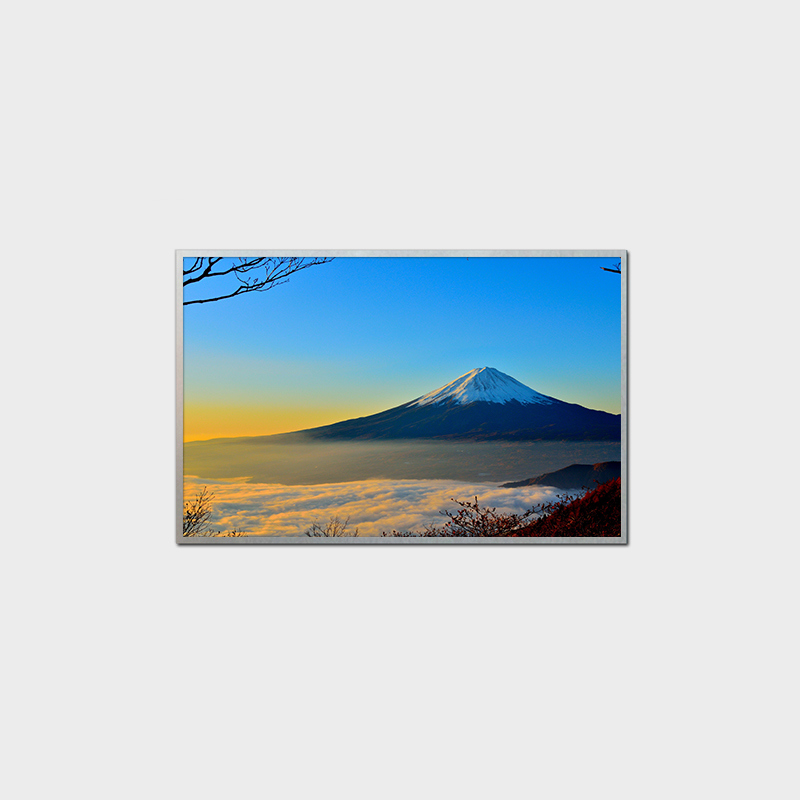

10.1 inch TFT LCD Display Outdoor 1000nits High Brightness Solution
High Brightness LCD Product Features
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C-80°C
- High shock resistance and high stability
High Brightness LCD Product Applications
- Bus Stop Station
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising
- Attractions Information Inquiry Machine
- Community Information Board
High Brightness LCD Data Sheet
LCMA-RX101B-1000
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 10.1 |
| Model | LCMA-RX101B-1000 |
| Brightness | 1000 |
| Resolution | 1280*800 |
| Active Area | 216.96*135.6 |
| Overall Size | 229.46*149.1*7.7 |
| Viewing Angle | 80/80/80/80 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20~70℃ |
