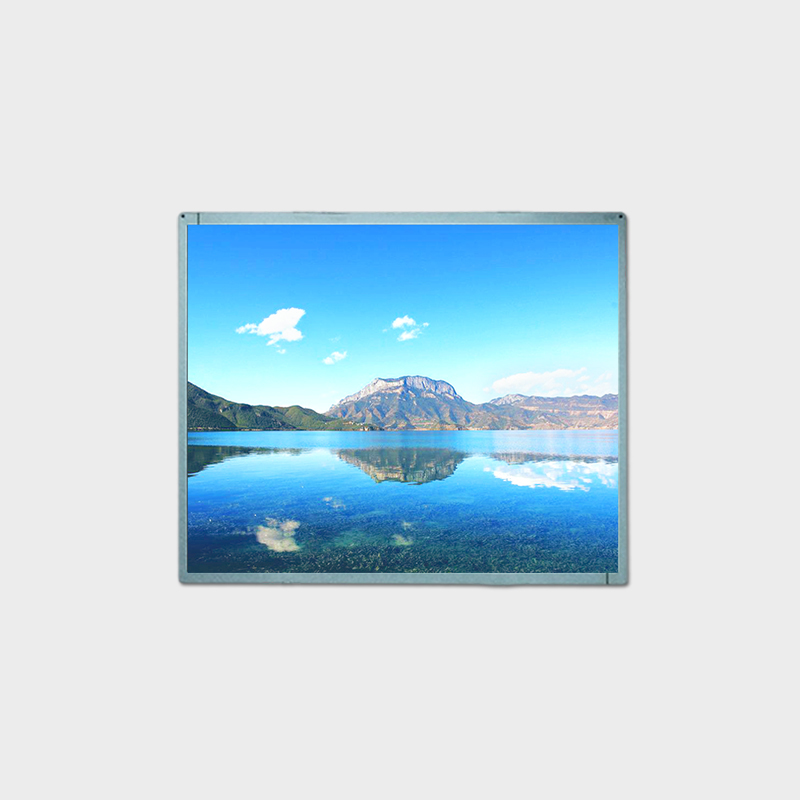

17 inch TFT LCD Display With High Brightness Bus Station Machine
اتصل بي للحصول على عينات مجانية وكوبونات
ال WhatsApp:0086 18588475571
(ويتشات): 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| حجم لوحة | 17 " | دقة | 1280*1024 |
|---|---|---|---|
| سطوع | 1000 (TYP.) | نسبة الارتفاع | 5: 4 |
| منطقة نشطة | 337.92*270.336 ملم | الأبعاد الخطوط العريضة | 358.5*296.5*10.3 مللي متر |
| إبراز | 17 inch TFT LCD display,high brightness bus station display,TFT LCD display with warranty,high brightness bus station display,TFT LCD display with warranty |
||
منتوج وصف
17 inch TFT LCD Display With High Brightness Bus Station Machine
High Brightness LCD Product Features
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C-80°C
- High shock resistance and high stability
High Brightness LCD Product Applications
- Bus Stop Station
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising
- Attractions Information Inquiry Machine
- Community Information Board
High Brightness LCD Data Sheet
| Model | LCMA-RX0170GA02-C100 |
|---|---|
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size (inch) | 17 |
| Brightness | 1000 |
| Resolution | 1280*1024 |
| Active Area | 337.92*270.336 |
| Overall Size | 358.5*296.5*10.3 |
| Viewing Angle | 85/85/80/80 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 5:4 |
| Touch Panel | Without |
| Operating Temperature | 0-50℃ |
