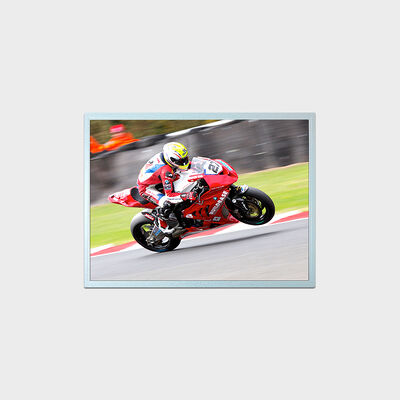

15 inch High Brightness TFT LCD Display With 2000:1 Contract Ratio
تفاصيل المنتج
| اسم | شاشة LCD 15 بوصة | حجم اللوحة | 15" |
|---|---|---|---|
| دقة | 1024*768 | سطوع | 1000 (النوع) |
| نسبة الارتفاع | 4:3 | المنطقة النشطة | 408.96*230.04 ملم |
| البعد المخطط التفصيلي | 326.5*253.5*9.6mm | واجهة | LVDS (1 قناة، 6/8 بت) |
| إبراز | 15 inch high brightness LCD display,TFT LCD display with 2000:1 contrast ratio,high brightness TFT display,TFT LCD display with 2000:1 contrast ratio,high brightness TFT display |
||
منتوج وصف
15 inch High Brightness TFT LCD Display With 2000:1 Contrast Ratio
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typ), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending HMI Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
LCMA-RX0150GI01-C100
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size | 15.0 inch |
| Model | LCMA-RX0150GI01-C100 |
| Brightness | 1000 nits (Support Customization) |
| Resolution | 1024 × 768 (Standard Resolution) |
| Active Area | 304.128 × 228.096 mm |
| Overall Size | 326.5 × 253.5 × 9.6 mm |
| Viewing Angle | 88/88/88/88 |
| Interface Definition | LVDS (1 ch, 6/8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 2000:1 |
| Aspect Ratio | 4:3 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
