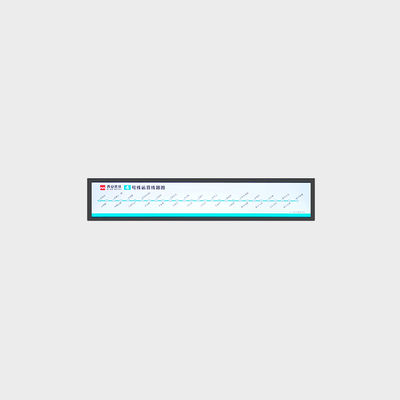

36.6 inch Bar Type TFT Display Support Commercial Display High Brigthenss Solution
اتصل بي للحصول على عينات مجانية وكوبونات
ال WhatsApp:0086 18588475571
(ويتشات): 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| اسم | شاشة LCD TFT من النوع الشريطي | حجم لوحة | 36.6" |
|---|---|---|---|
| دقة | 1920 * 290 | سطوع | 1000 (TYP.) |
| درجة حرارة التشغيل. | -20 ~ 60 ℃ | منطقة نشطة | 919.3*139 ملم |
| الأبعاد الخطوط العريضة | 956.9*176.5*17.9 ملم | ||
| إبراز | 36.6 inch bar type LCD display,commercial TFT display high brightness,bar type TFT display solution,commercial TFT display high brightness,bar type TFT display solution |
||
منتوج وصف
36.6 inch Bar Type TFT Display Support Commercial Display High Brightness Solution
Product Advantage
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting)
- Advanced cutting technology to ensure the yield and precision
- High reliability with same features as original panel
- High Anti-vibration
- Brightness can be customized (500-2500nit)
- Long life time 50K hours(Typ), up to 80K hours
Product Application
- Commercial signage: Advertising and Price Shelves
- Public transportation: Bill board for Bus/Metro and light rail
- Guidance board, Lift advertising board
- Financial services. Bank call notice board
- Name card
- Advertising board on taxi
Specifications
LCMA-RX0366TA01-C100
| Brand | Rogin |
|---|---|
| Series | Bar Type TFT LCD Display |
| Panel Size | 36.6 inch |
| Model | LCMA-RX0366TA01-C100 |
| Brightness | 1000nits |
| Resolution | 1920*290 |
| Active Area | 919.3*139mm |
| Overall Size | 956.9*176.5*17.9mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 4000:1 |
| Touch Panel | Without |
| Operating Temperature | -20-60 ℃ |
