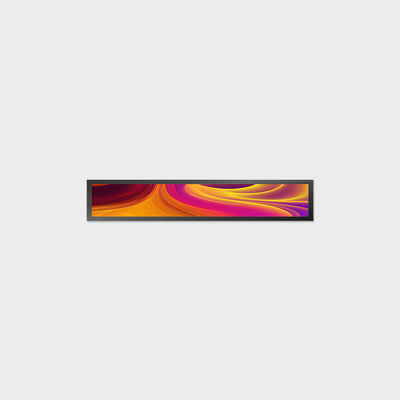

36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion
اتصل بي للحصول على عينات مجانية وكوبونات
ال WhatsApp:0086 18588475571
(ويتشات): 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| اسم | شاشة LCD TFT من النوع الشريطي | حجم لوحة | 36.6" |
|---|---|---|---|
| دقة | 1920 * 290 | سطوع | 1000 (TYP.) |
| درجة حرارة التشغيل. | -20 ~ 60 ℃ | منطقة نشطة | 919.296*138.85 ملم |
| الأبعاد الخطوط العريضة | 960*174.35*16.9 مللي متر | ||
| إبراز | 36.6 inch bar type LCD display,high brightness bar type display,1920x290 resolution bar display,high brightness bar type display,1920x290 resolution bar display |
||
منتوج وصف
36.6 inch Bar Type Display With 1920*290 Resolution With High Brightness Integrated Solution
36.6 inch Bar Type Display With 1920*290 Resolution With High Brightness Integrated Solution
Product Advantages
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Applications
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
Model: LCMA-RX0366TA02-C100
| Brand | Rogin |
|---|---|
| Series | Bar Type TFT LCD Display |
| Panel Size | 36.6 inch |
| Model | LCMA-RX0366TA02-C100 |
| Brightness | 1000nits |
| Resolution | 1920*290 |
| Active Area | 919.296*138.85mm |
| Overall Size | 960*174.35*16.9mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 4000:1 |
| Touch Panel | Without |
| Operating Temperature | -20-60 ℃ |
