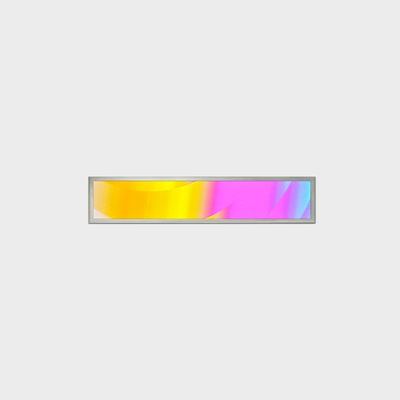

14.9 Inch Bar LCD Display 1028*204 Resolution 700nits Brightness Support Full Customization
اتصل بي للحصول على عينات مجانية وكوبونات
ال WhatsApp:0086 18588475571
(ويتشات): 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| اسم | شاشة LCD بار | حجم لوحة | 14.9" |
|---|---|---|---|
| دقة | 1028*204 | سطوع | 700 (الطباع) |
| درجة حرارة التشغيل. | 0 ~ 50 ℃ | منطقة نشطة | 374.78*60mm |
| الأبعاد الخطوط العريضة | 399.78*81*12.88 مللي متر | ||
| إبراز | 14.9 inch bar LCD display,bar type LCD display 700nits brightness,customizable bar LCD display 1028x204,bar type LCD display 700nits brightness,customizable bar LCD display 1028x204 |
||
منتوج وصف
14.9 Inch Bar LCD Display 1028*204 Resolution 700nits Brightness Support Full Customization
14.9 Inch Bar LCD Display 1028*204 Resolution 700nits Brightness Support Full Customization
Product Advantage
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Application
- Commecial signage : Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0149TB03-C070
| Brand | Rogin |
|---|---|
| Series | Bar Type LCD Display |
| Panel Size | 14.9 inch |
| Model | LCMA-RX0149TB03-C070 |
| Brightness | 700 |
| Resolution | 1028*204 |
| Active Area | 374.78*60mm |
| Overall Size | 399.78*81*12.88mm |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Touch Panel | Without |
| Operating Temperature | 0~50 ℃ |
