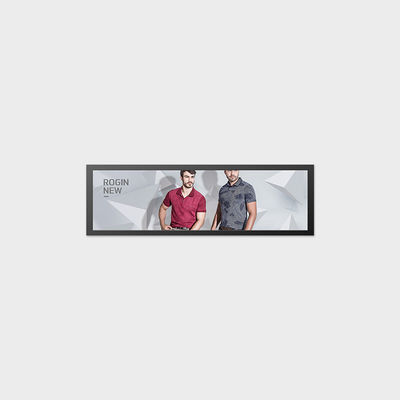

28.6 Inch Bar Type Display Support Fully Customization With 1920*540 Resolution 500nits
اتصل بي للحصول على عينات مجانية وكوبونات
ال WhatsApp:0086 18588475571
(ويتشات): 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| اسم | شاشة LCD بار | حجم لوحة | 28.6" |
|---|---|---|---|
| دقة | 1920*540 | سطوع | 500 (TYP.) |
| درجة حرارة التشغيل. | 0 ~ 50 ℃ | منطقة نشطة | 698.4*196.43 ملم |
| الأبعاد الخطوط العريضة | 732*231.6*19.4 مللي متر | ||
| إبراز | 28.6 inch bar type LCD display,customizable bar display 1920x540 resolution,500nits brightness bar type screen,customizable bar display 1920x540 resolution,500nits brightness bar type screen |
||
منتوج وصف
28.6 Inch Bar Type Display Support Fully Customization With 1920*540 Resolution 500nits
Product Advantage
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Application
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0286TA01-C050
| Brand | Rogin |
|---|---|
| Series | Bar Type LCD Display |
| Panel Size | 28.6 inch |
| Model | LCMA-RX0286TA01-C050 |
| Brightness | 500 |
| Resolution | 1920*540 |
| Active Area | 698.4*196.43mm |
| Overall Size | 732*231.6*19.4mm |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 4000:1 |
| Touch Panel | Without |
| Operating Temperature | 0~50 ℃ |
