9 Inch Bar-Type TFT LCD Display for Smart Home Appliance Control Interface
تفاصيل المنتج
| حجم اللوحة | 9" | دقة | 1280*448 |
|---|---|---|---|
| سطوع | 500 (النوع) | المنطقة النشطة | 216.96*76 مللي متر |
| البعد المخطط التفصيلي | 228*90*13 مللي متر | اسم | شاشة LCD من النوع الشريطي |
| إبراز | 9 inch bar-type LCD display,TFT LCD for smart home,appliance control interface display,TFT LCD for smart home,appliance control interface display |
||
منتوج وصف

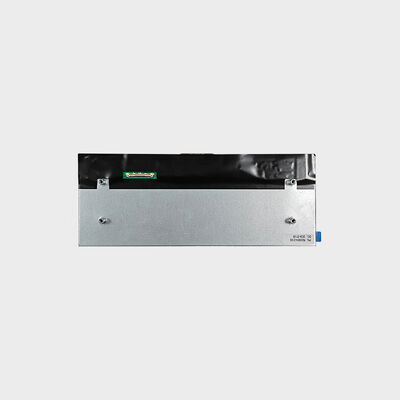

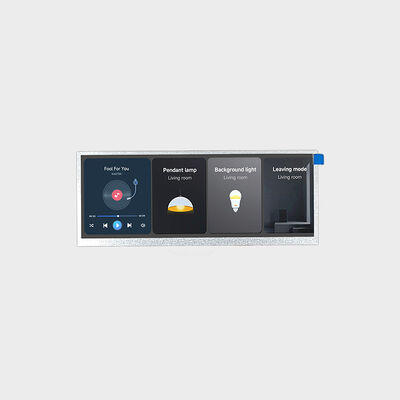

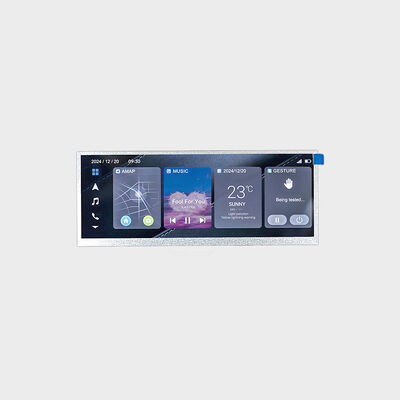

9 Inch Bar-Type TFT LCD Display for Smart Home Appliance Control Interface
This 9-inch bar-type TFT LCD display is specifically designed for smart home appliance control interfaces, offering high reliability and customizable brightness options.
Product Advantages
- Three cutting machines with two advanced cutting production lines, capable of cutting up to 1.7 meters (75 inches)
- Advanced cutting technology ensures high yield and precision manufacturing
- High reliability with features matching original panel specifications
- Enhanced anti-vibration performance
- Customizable brightness ranging from 500 to 2500 nits
- Long lifespan of 50,000 hours typical, up to 80,000 hours maximum
Product Applications
- Commercial signage: Advertising displays and price shelves
- Public transportation: Bus, metro, and light rail billboards
- Guidance boards and lift advertising displays
- Financial services: Bank call notice boards
- Name card displays
- Taxi advertising boards
Technical Specifications
| Model | LCMA-RX090H-0100 |
|---|---|
| Brand | Rogin |
| Series | Bar Type LCD Display |
| Panel Size | 9.0 inches |
| Brightness | 500 nits (Support Customized) |
| Power Consumption | 2.52W |
| Resolution | 1280 × 448 |
| Active Area | 216.96 × 76 mm |
| Overall Size | 228 × 90 × 13 mm |
| Viewing Angle | 85/85/85/85 |
| Interface Definition | LVDS (1 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 20:7 |
| Touch Panel | Without |
| Operating Temperature | -10°C to 50°C |
